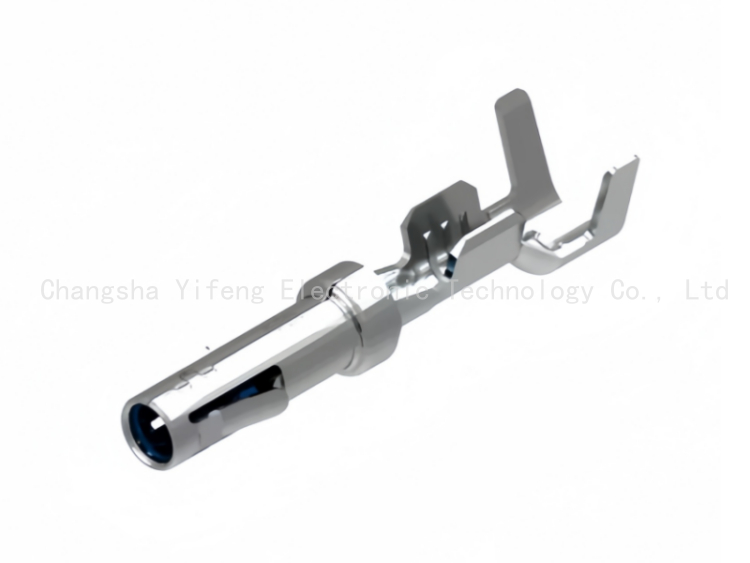

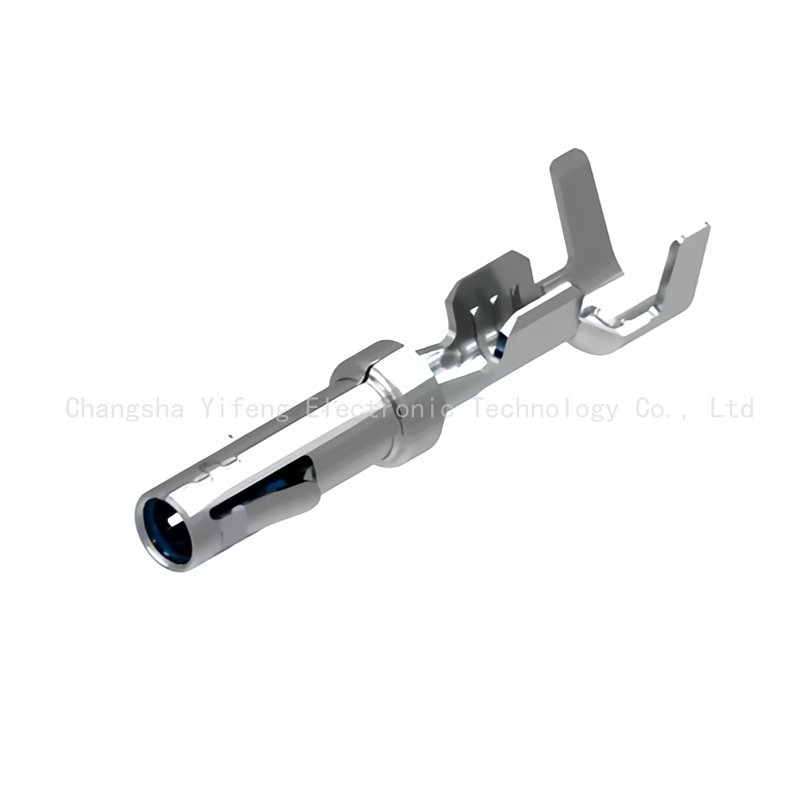

kostal 22124472190

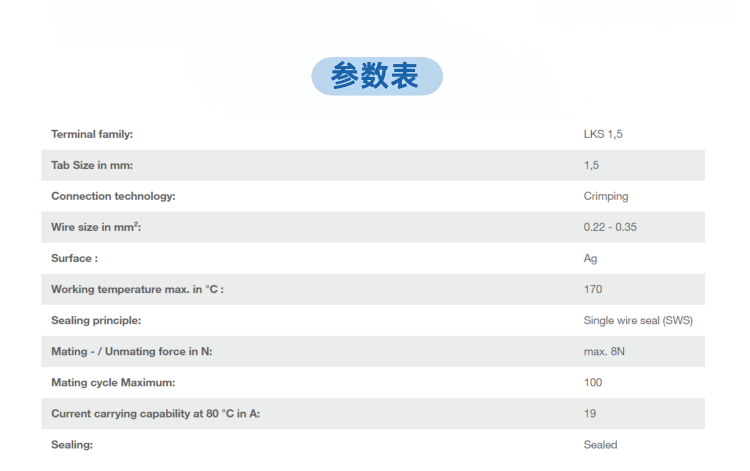

Terminal family: LKS 1,5 Tab Size in mm: 1,5 Connection technology: Crimping Wire size in mm²: 0.22 - 0.35 Surface: Ag Working temperature max. in °C: 170 Sealing principle: Single wire seal (SWS) Mating - / Unmating force in N: max. 8N Mating cycle Maximum: 100 Current carrying capability at 80 °C in A: 19 Sealing: Sealed
